5 Axis CNC Saw with Special Design 20" Diameter Self-Centering 4 Jaw Chuck and Fully Automatic Machine Cycle.
This 5 axis CNC saw measures, compensates part variations, position, clamps and cuts customers product to within .005 tolerance during fully automatic cycle.
Single Source Responsibility
Reduced Operator Fatigue and Improved Productivity

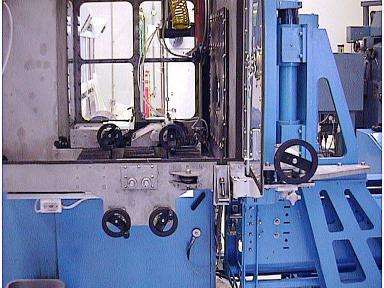

Opposed spindle drilling and reaming machine with rotary transfer machining center.
This 8 station rotary transfer, dial index machining center is the latest of three I designed and built for Torrington Bearing. Design includes assembly and detail drawings, documentation manuals, schematics and control programming. Build includes fabrication of machine, demonstration and runoff on shop floor and on site installation and start up.
Produces family of steering components for the Ford Explorer
Changeover in less than 1 hour
One operator, 6 second cycle time and 2.0 CPk
Tour our web site for more information and examples of drilling, tapping and milling machines, boring machines, welding machines, assembly machines, robots, conveyors, plastic injection, diecasting dies, molds, slides, spindles, components and more
Some current installations include:
Briggs & Stratton-12 STATION ROTARY TRANSFER MACHINING AND TESTING MACHINE
Torrington Bearing-8 STATION ROTARY TRANSFER MACHINING CENTER
Airtex Products-12 STATION ROTARY TRANSFER ASSEMBLY AND TESTING MACHINE
Intermet Foundries-HIGH VOLUME MULTI-SPINDLE DRILLING, MILLING AND BORING MACHINES
Boeing-PROCESS AND PRODUCTION CAPABILITIES STUDIES
U.S Air Force-SUPPLIER CAPABILITIES AND QUALITY ANALYSIS
Patented Material Handling System-MAJOR COMPUTER COMPONENT MANUFACTURER
Class1 Division1 Explosion Proof Machinery & Controls -PLASTICS INDUSTRY
FABRICATION, MANUFACTURE & INSTALLATION
85 N. Central Drive
O'Fallon, MO 63366
CONTACT ME FOR A QUICK, NO OBLIGATION ANALYSIS OF YOUR REQUIREMENTS.
